Step By Step Guide


Pneumatic line leashes
Step 1

Connect the two (1) Pneumatic Line Leashes from the (2) MatrixTM Module(s) to the (3) Expansion Manifold.

Expansion manifold front view
Step 2

Connect the main pneumatic supply from the (1) Leads and (2) Regulator from the (3) Expansion Manifold to the (4) System Controller

System Controller connection
Step 3

Plug the (1) Smart Touch Screen to the (2) System Controller (Push to Connect).

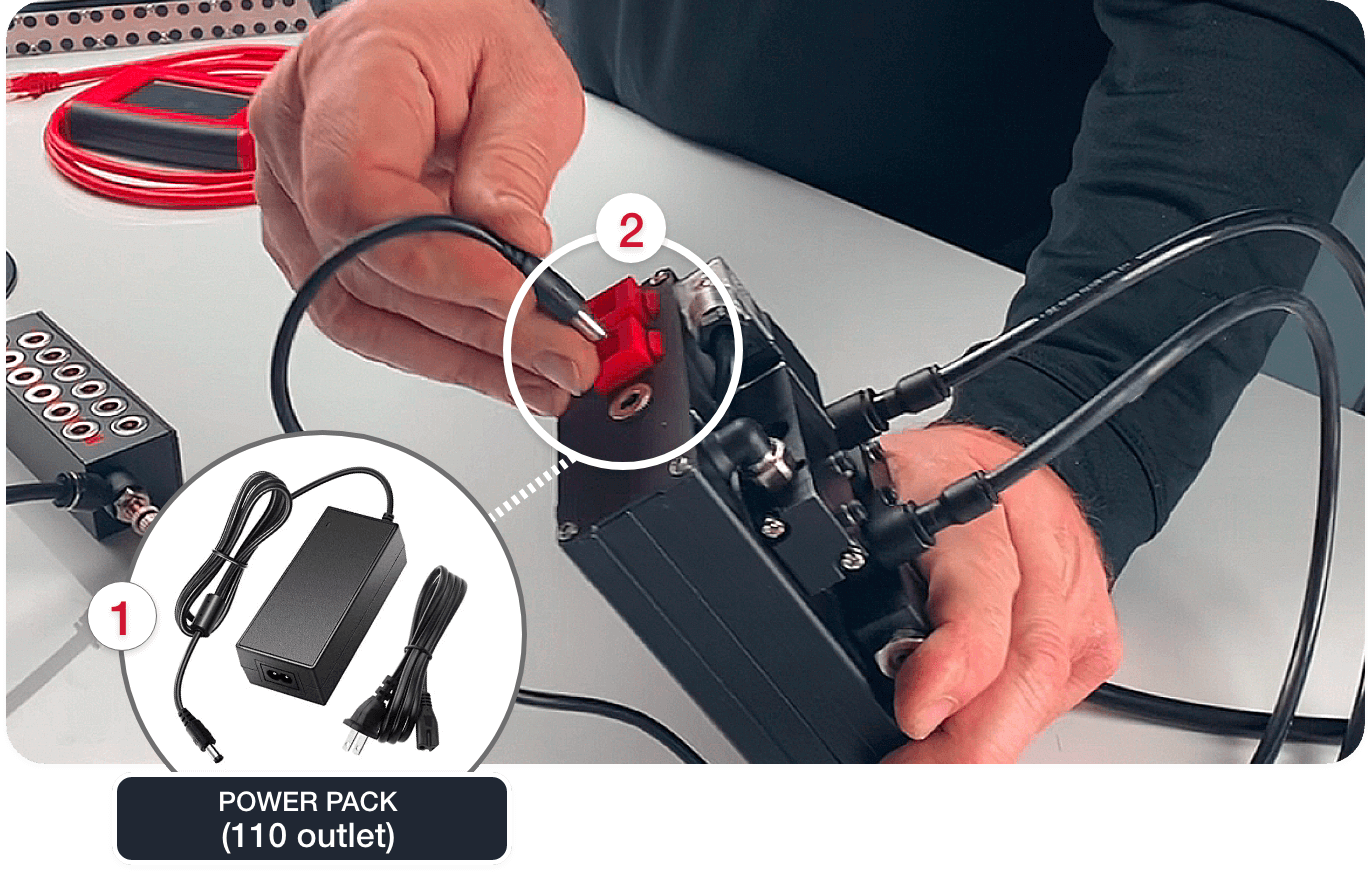

Power Pack
Step 4

Plug in (1) Power Pack to the (2) System Controller.

Pneumatic supply
Step 5

Turn on (1) Pneumatic Supply and regulate to 80psi. Adjust flow controls on the (2) Expansion Manifold so all (3) MatrixTM Module(s) pins raise together when triggered.

Manual override switches
Step 6

Run a test with (1) Manual Override Switches.

Optical trigger switch
Step 7

Optional way to trigger the system (1) Optical Trigger Switch. Featuring two (2) Magnetic Positions located on both sides of the switch. You can mount the switch (3) horizontally or vertically depending on your setup.

Step 8

Position the (1) Optical Trigger Switch. Take the (2) Cable Connector and plug it into any of the ports on the (3) Control Box.




Kit Components & Features


  • SMT Tooling Matrix kit

    Components & Features



VizVibe AR Solutions
Matrix SMT tool kit
Kit Components
  • Support Modules (12", 15", or 18")
  • Electro-Pneumatic Controller
  • Connection Manifold
  • Accessory Kit (hoses, fittings, etc.)


Matrix SMT Tooling Automatic PCB Support


Features

  • ESD Safe
  • More support per PCB area than any other system
  • Softest setup force
  • Best pin locking force
  • Three standard lengths available. Inquire about custom sizes.
  • 304 Stainless Steel support pins
  • No O-ring seals to dry out or leak
  • Easy and clean maintenance
